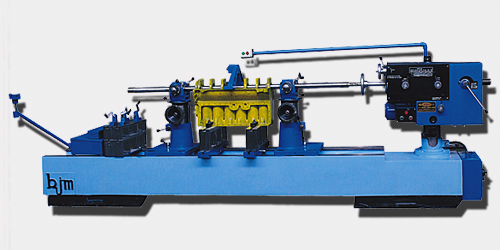

| ::Horizontal-Line-Boring-Machine:: |
| Model |
1550 MM |
2000 MM |
2500 MM |
| Max. length of Cylinder Block |
Block 1550 mm (61") |
2000 mm (79") |
2500 mm (98.5") |
| Distance from built in Parallels to centre of Boring Bar Max/Min |
815 mm (32"),515 mm (20") |
815 mm (32"),515 mm (20") |
815 mm (32"),515 mm (20") |
| Boring Capacity |
34-150 mm, (1.5/16" - 5 7/8") |
34-150 mm, (1.5/16" - 5 7/8") |
34-150 mm, (1.5/16" - 5 7/8") |
| Spindle Speeds |
Continuously variable 50 to 750 RPM |
Continuously variable 50 to 750 RPM |
Continuously variable 50 to 750 RPM |
| Feeds (Both Directions) |
0.04-0.15 mm/rev,
(0.0016"-0.0059" rev) |
0.04-0.15 mm/rev,
(0.0016"-0.0059" rev) |
0.04-0.15 mm/rev,
(0.0016"-0.0059" rev) |
| Max. Travel of Boring Bar |
325 mm (12.13/16") |
325 mm (12.13/16") |
325 mm (12.13/16") |
| Additional travel with Extension Bar |
260 mm (10.1/4") |
260 mm (10.1/4") |
260 mm (10 1/4" ) |
| Electric Motor |
2 HP - 1410 RPM |
2 HP - 1410 RPM |
2 HP - 1410 RPM |
| Length of the Machine |
3550 mm (140") |
4050 mm (159") |
4600 mm (181") |
| Width of the Machine |
760 mm (30") |
760 mm (30") |
760 mm (30") |
| Max. Height of the Machine |
1800 mm (71") |
1800 mm (71") |
1800 mm (71") |
| Work Space Required |
5050x760mm, (200" x 30") |
5600x760mm, (220" x 30") |
6050x760mm, (238" x 30") |
| Net Weight (Approximate) |
1650 Kg |
2000 Kg |
2250 Kg |
| Gross Weight (Approximate) |
2150 Kg. |
2800 Kg. |
2900 Kg. |
| Shipping Dimension cms LxBxH |
385x95x155 |
440x95x155 |
500x95x155 |
| Shipping Volume Approimate cm3 |
5.70 M3 |
6.50 M3 |
7.40 M3 |
| Note : Due to constant improvements the descriptions, dimensions and illustrations are not binding in detail. |
